Single Face Boom Underground Tunnel Jumbo Drilling Rig
The single-arm boom underground large tunnel boring machine is a highly efficient and specialized piece of engineering equipment designed for the excavation of large-scale subterranean tunnels. Equipped with a robust, articulated single-arm boom system, it enables precise and powerful drilling and cutting through challenging geological formations, automation and control systems, allowing for optimized performance, minimal manual intervention, and enhanced safety during operation. Its design prioritizes stability and maneuverability in confined underground spaces, making it ideal for infrastructure projects such as subway systems, hydroelectric tunnels, and transportation passages.
Underground jumbo drilling rig high drilling accuracy, durability, and adaptability to varying ground conditions, the single-arm boom tunnel boring machine plays a critical role in modern mega-infrastructure development, ensuring efficient progress and long-term reliability in tunnel construction.
Products Description
| Product name:jumbo drilling rig | | | Model | SRJ18 | | Maximum Coverage Area(H*W) | 2.9*2.4m | | Minimum Coverage Area(H*W) | 6.3*6.5m | | Overall Dimension(L*W*H) | 11700*1800*2100/2900mm | | Weight | 13.6T | | Turning Radio Outer/Inner | 5600/3150mm | | Rock Drill Range | Ф41-76mm | | Rock Drill Power | 18kw | | Rock Drill Rate | 60Hz | | Drill Rod | T38-H35-R32-4305mm | | Hole Depth | 4000mm | | Diesel Engine | Yuchai 66kw | | Main Electric Motor | 55kw | | Total Installed Power | 62kw | | |
| Rock drill | | | Shank | T38 | | Drill range | 41mm-76mm | | Reaming range | 76mm-4127mm | | Height over drill centre | 95mm | | Length without shank | 1008mm | | Impact power | 18kW | | Impact rate | 60Hz | | Rated hydraulic pressure | 210bar | | Maximum hydraulic pressure | 230bar | | Rotation system | Separate rotation | | Rotation speed | 0~215rpm | | Rotation torque | max 1000Nm | | |

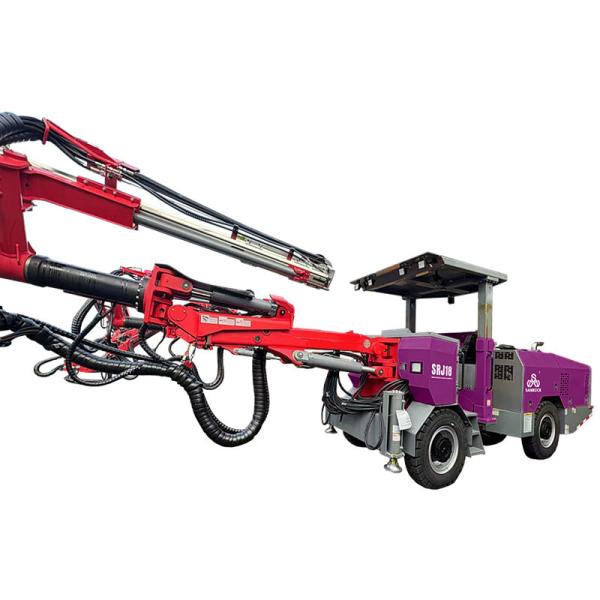

SANROCK SRJ18 Underground Jumbo Drilling Rig Scope of application One-boom face drilling rig for medium sized underground drifts,
with coverage area 7-35m².
Main benefits
> Optimized: for small to medium size tunnels and drifts down to 2.4 m widex2.9 m high,
up to 6 m widex6 m high.
>Economical and efficient: with automatic drilling, automatic return and anti-jamming functions increased the service life of drilling tools.
> Intelligent: with function of real-time monitoring and evaluation of construction conditions by digital recording data of the number and depth of holes.
>Safe and simple operation: equipped with automatic diagnosis and voice alarm system. High popularity: and good after-sales service support.
