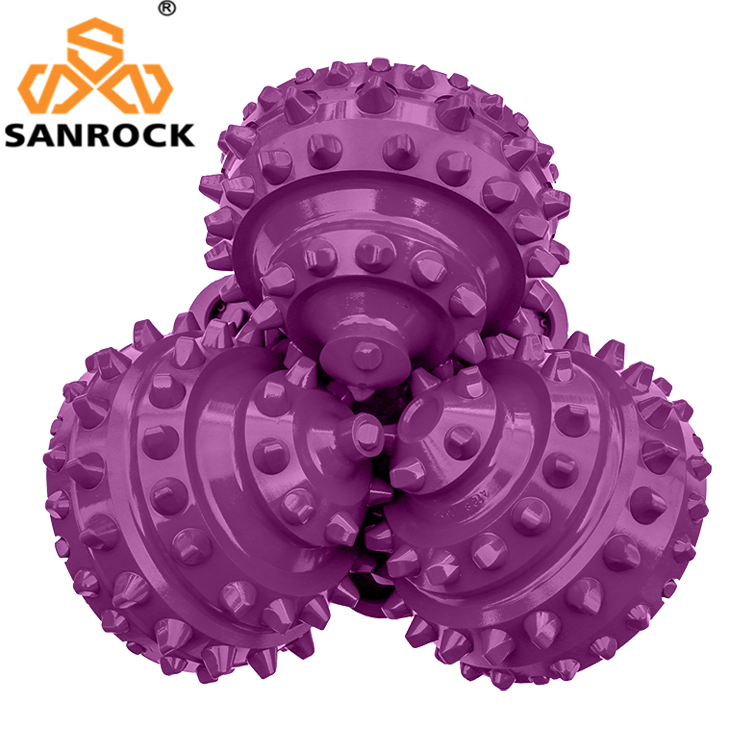

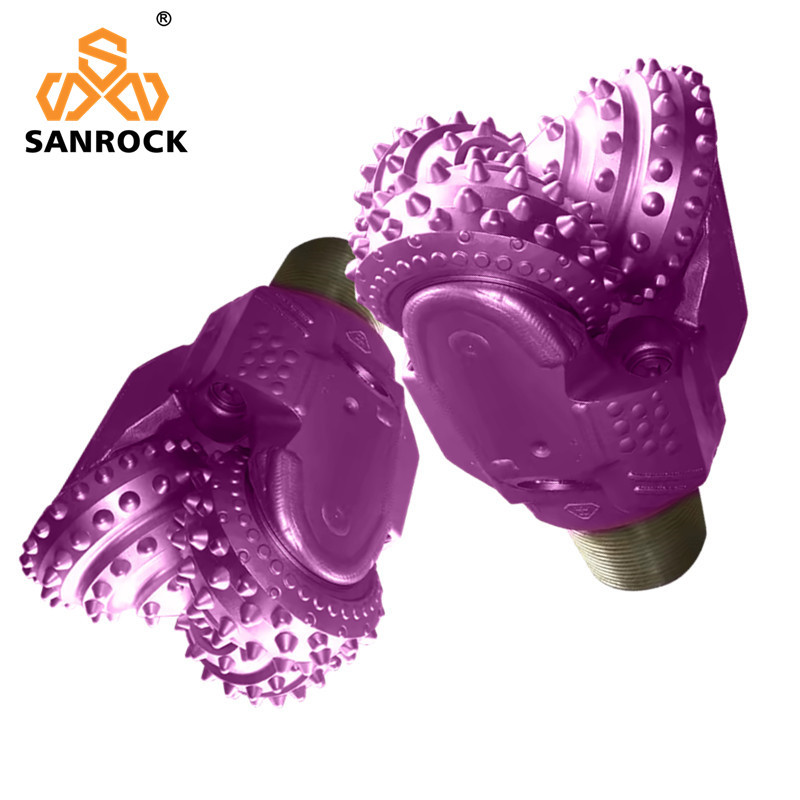

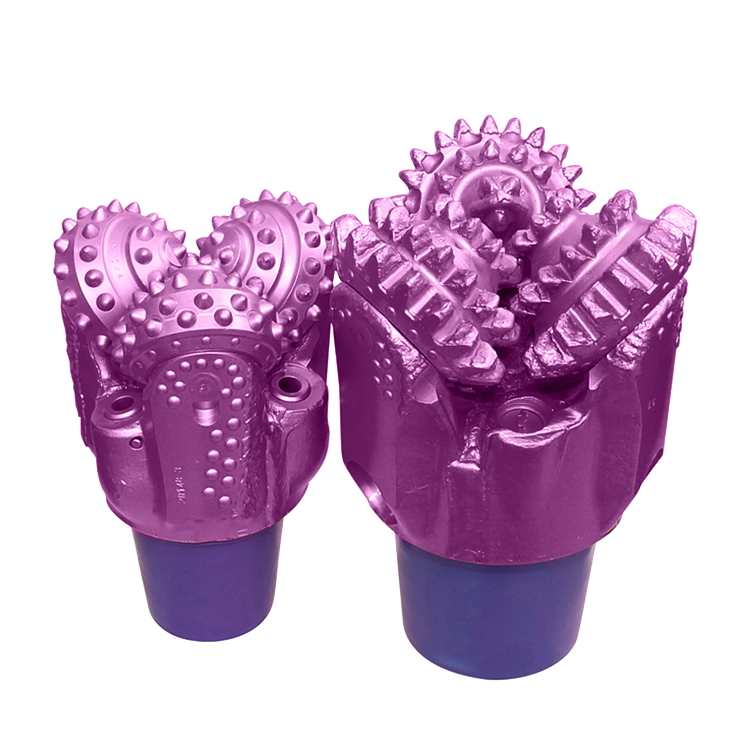

Tricone Roller Cone Drill Bit
roller cone drill bit is a critical cutting tool primarily used in rotary drilling applications, especially in oil and gas exploration, mining, and geological surveying. It features multiple conical-shaped rollers, or "cones," mounted on bearings that rotate as the drill string turns. Each cone is equipped with hardened teeth or tungsten carbide inserts designed to crush, fracture, and dislodge rock formations through a combination of compressive and shear forces.
These bits are highly effective in a wide range of geological conditions, from soft sediments to hard and abrasive rock layers. The design allows for efficient penetration, cuttings removal, and heat dissipation, enhancing drilling speed and durability. Roller cone bits are commonly paired with tri-cone configurations—three cones arranged symmetrically—to ensure stability, balance, and uniform wear during operation.
Known for their versatility and reliability, roller cone drill bits play an essential role in resource extraction and subsurface investigation, offering robust performance in challenging environments.
Oil and Gas Exploration:
Roller cone bits are extensively used in drilling petroleum and natural gas wells. They excel in crushing and fracturing diverse rock types—from soft shale and sandstone to hard limestone and dolomite—enabling efficient wellbore creation for extraction and production.
Products Description
| Brand Name | Sanrock | | Type | DRILL BIT | | Machine Type | Drilling Equipment | | Material | Carbon Steel1308 PDC cutters | | Processing Type | Forging | | Use | Well Drilling | | Product name | TCI Tricone Bit | | Name | TCI Tricone Rock Bit | | Key words | Tricone Roller Bit | | Application | oil field, water well, geothermal, underground foundation,Coal Mining | | Advantage | Wear Resistant,High Performance | | Diameter | 98mm | | Bearing type | sealed bearing | | Formation | soft rock formation,medium hard formation,hard rock formation | | Thread | 2 3/8'' API REG | |
Advantages of roller cone bits:

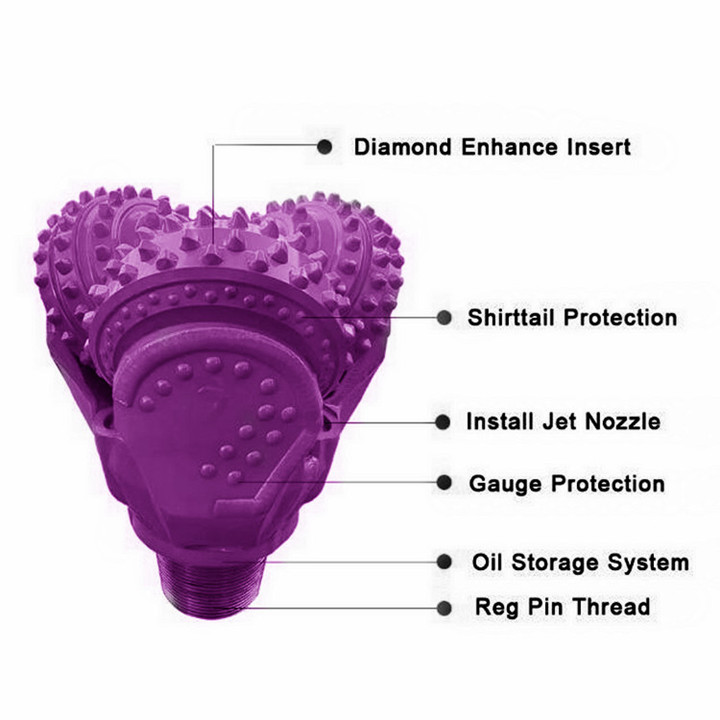

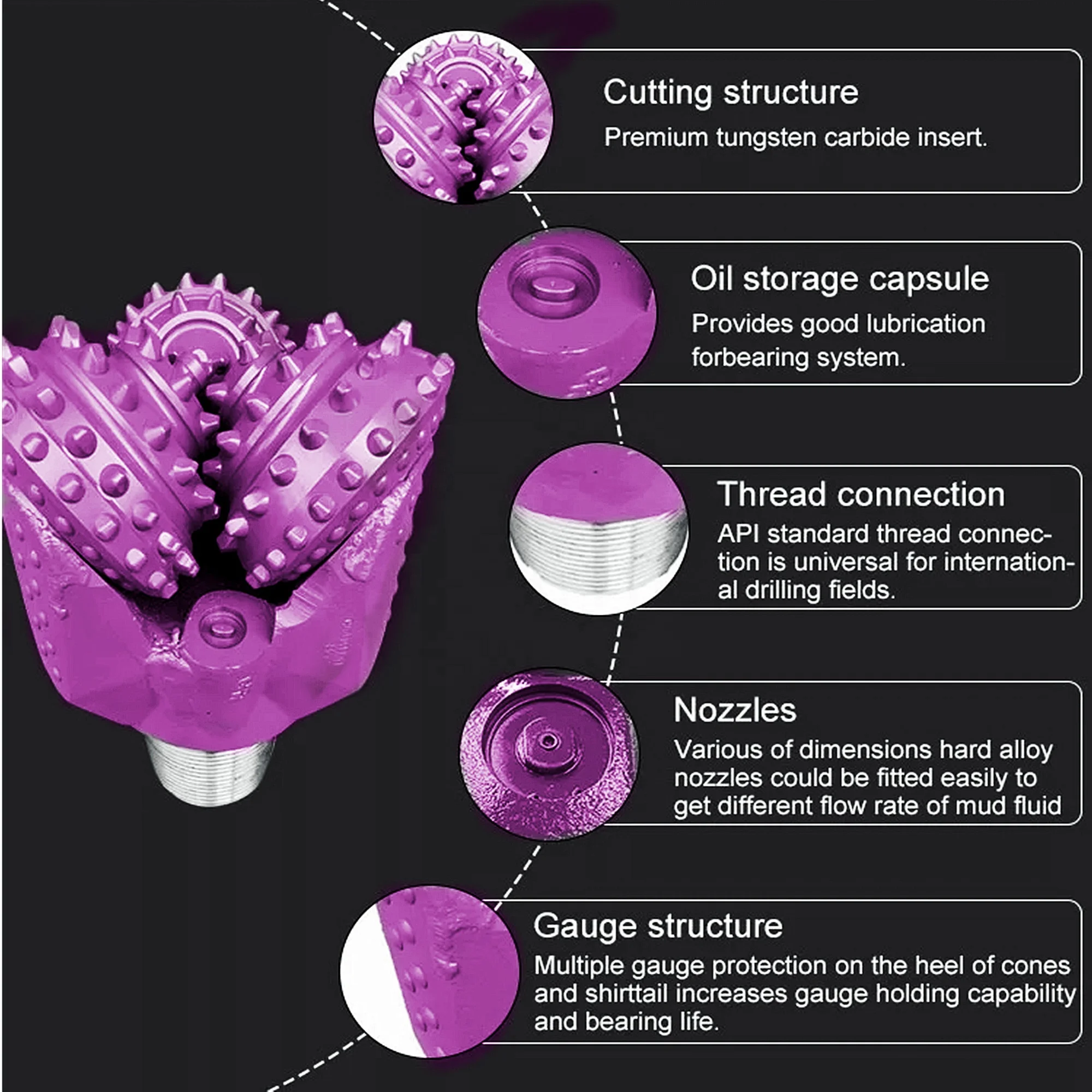

1. High-strength and high-toughness carbide teeth are used to improve the impact resistance of the teeth and reduce the tooth breakage rate;
2. The optimally designed tooth row number, tooth number, exposed tooth height and unique alloy tooth shape give full play to the cutting ability and cutting speed of the drill bit;
3. Widely used in petroleum exploration, mining exploration, geothermal wells, hydrological exploration and other fields.
Our company can provide specific solutions according to the actual drilling situation, and customize assembled drill bits of any diameter, including large-diameter machine pile drill bits, different types of drill bits, reaming bits, directional drilling bits, etc.
